The LD 2109 Triple Outline Marker Light Set (Left and Right) is designed to enhance the visibility and safety of your vehicle, featuring a short stalk arm for easy horizontal mounting on the sides. Perfect for mounting on the top of a bumper. This compact marker light set delivers 3-in-1 functionality, perfect for trailers, trucks, and more.
Designed For:
Delivery Vans
Sprinter Vans
Straight Trucks
Box Trucks
Pick-Up Trucks
Buses
Tractor Trailers
RV's
What's Included:
1× Left-side LED marker lamp
1× Right-side LED marker lamp

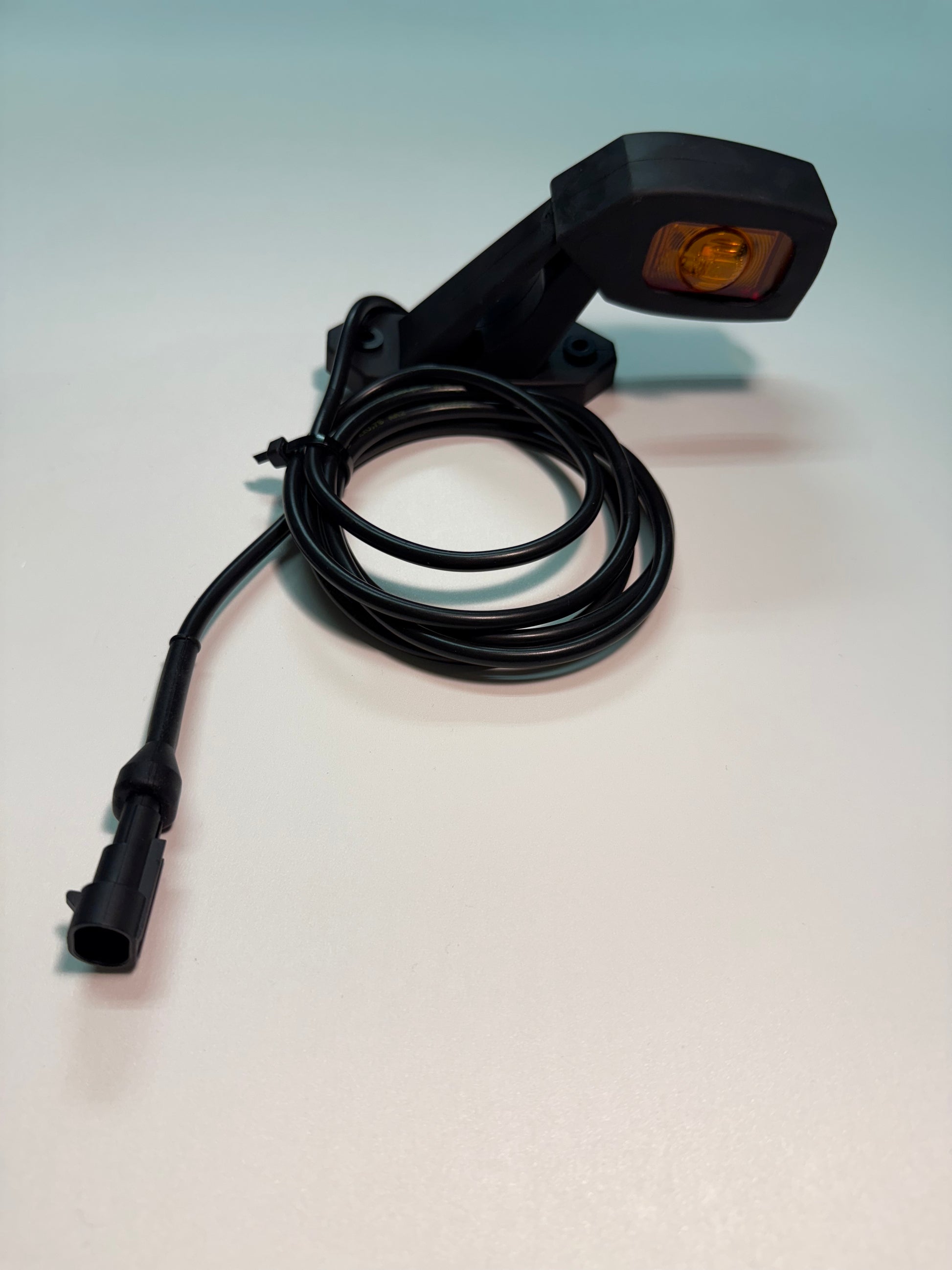

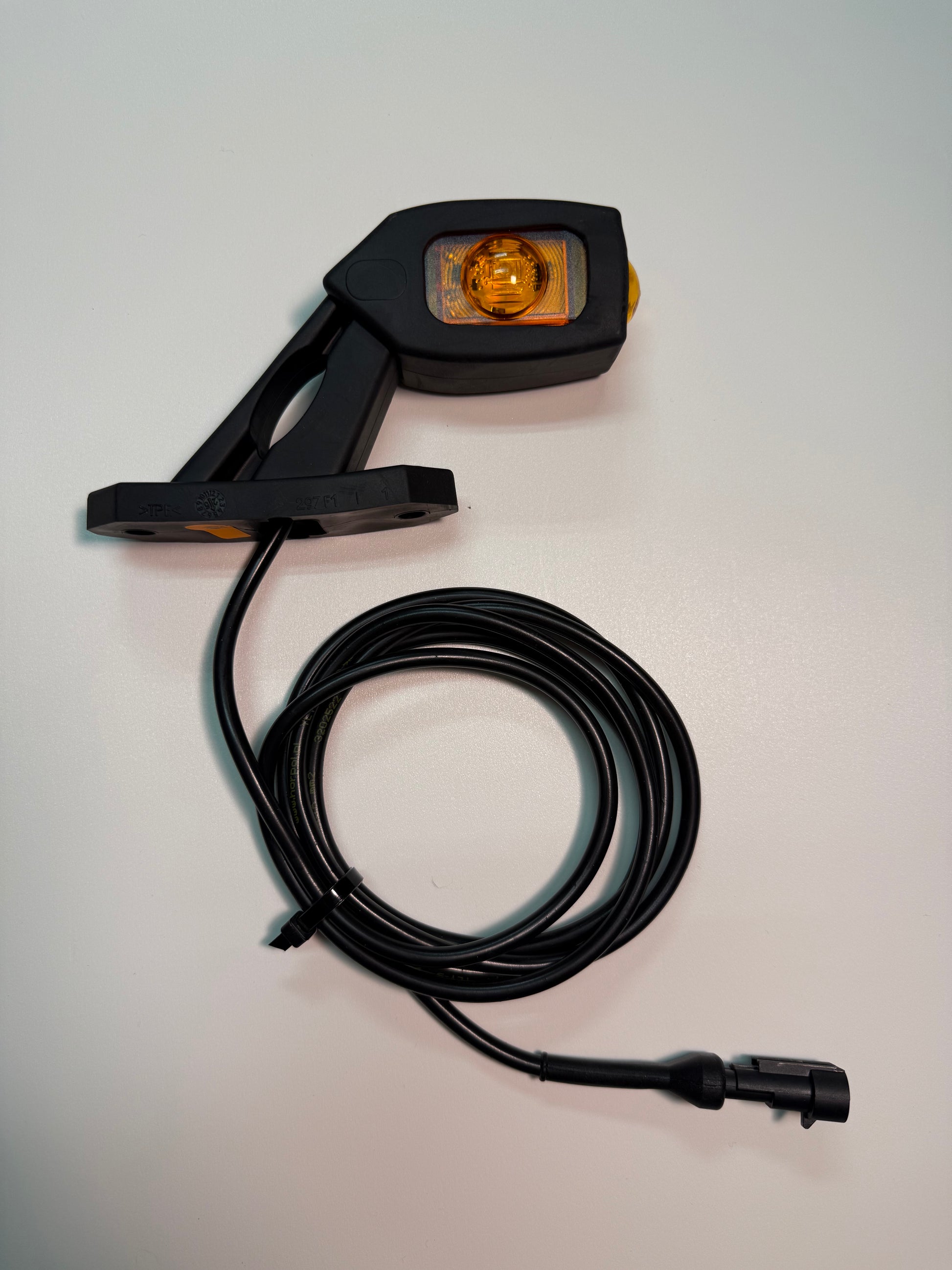

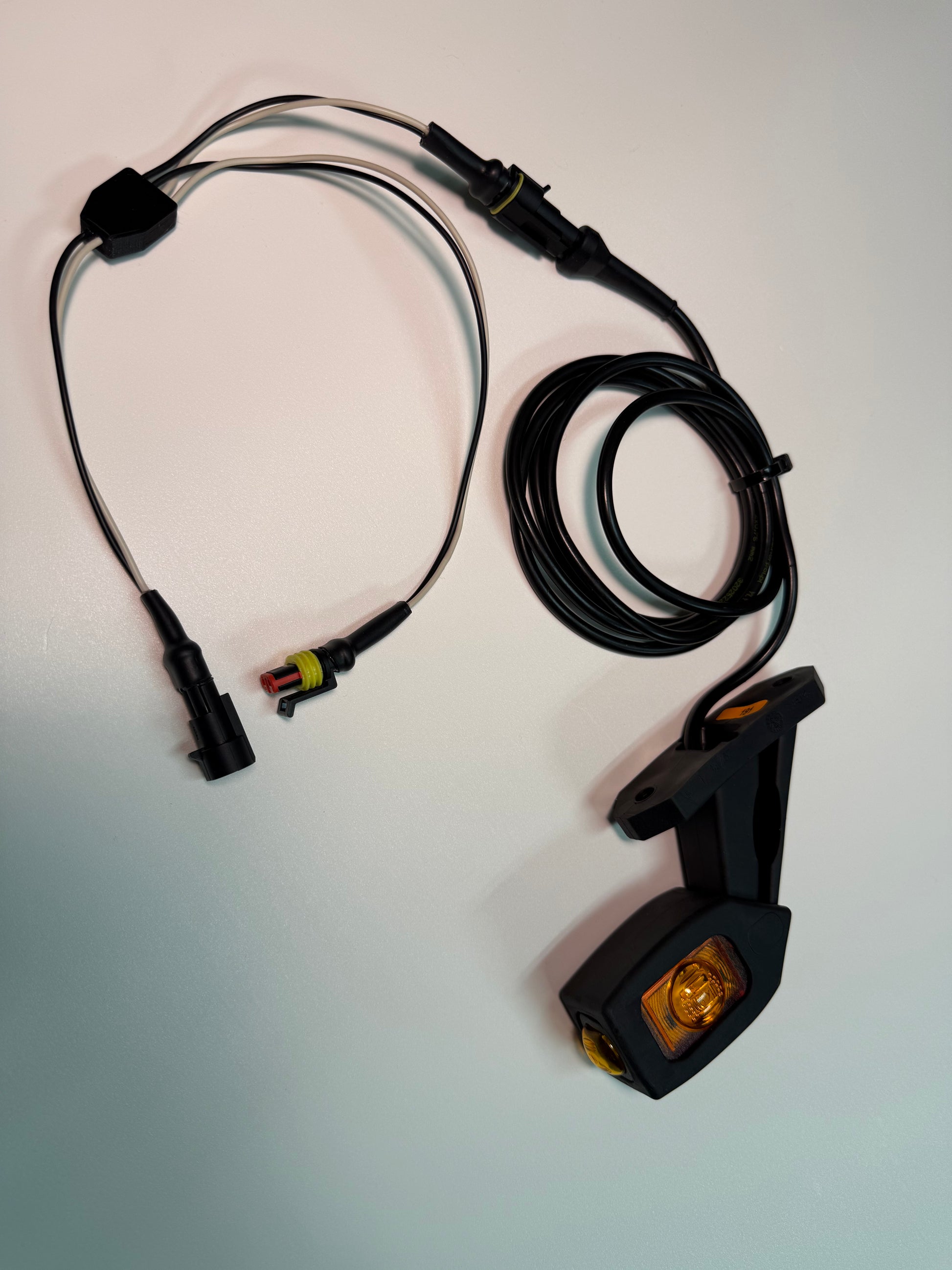

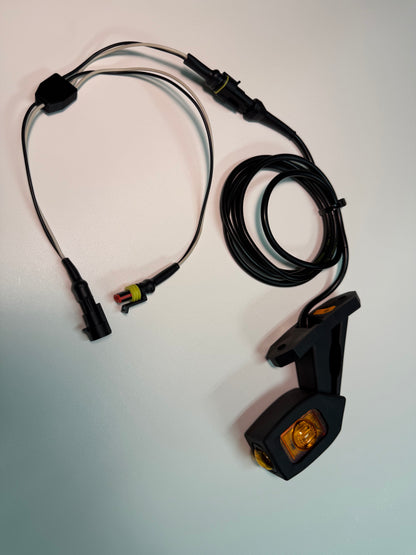

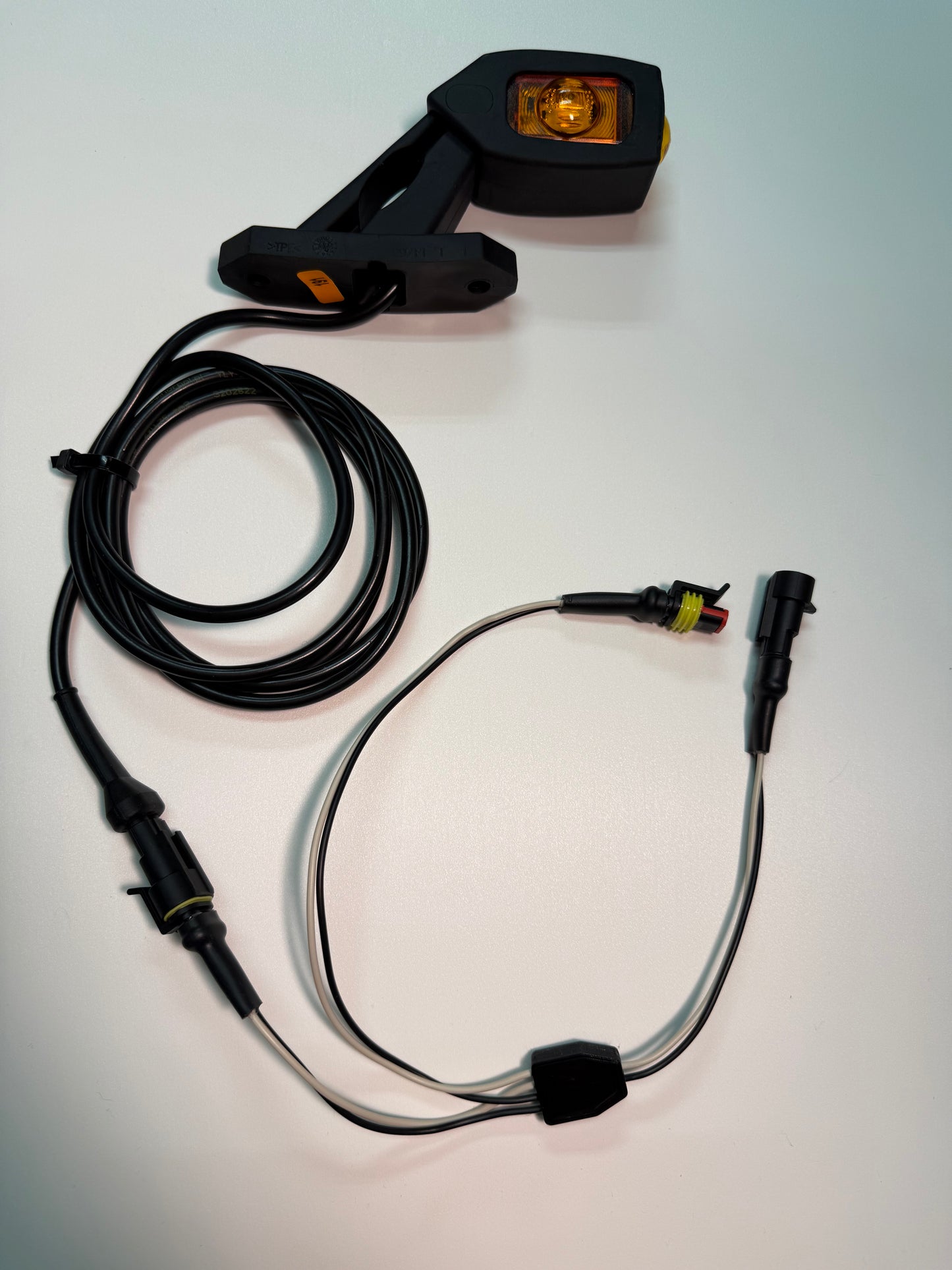

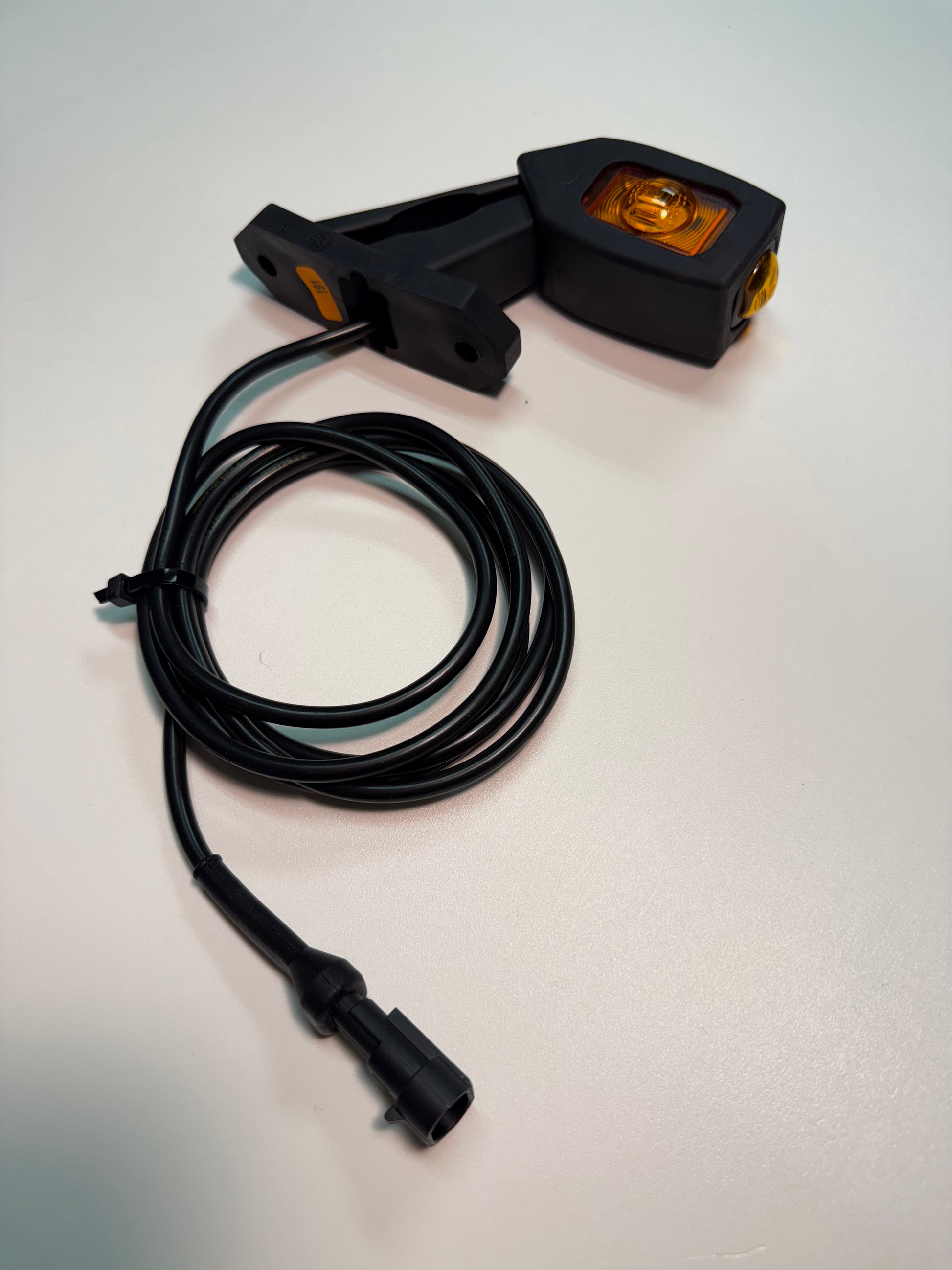

Each light comes with a 6 ft (1.83m) cable with SuperSeal connector end for easy and secure installation OR bare wire ends for splicing
Each lamp includes integrated front (white or amber choice of color), side (amber), and rear (red) position lights.

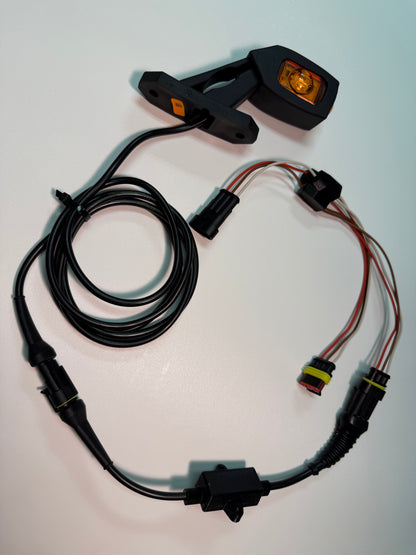

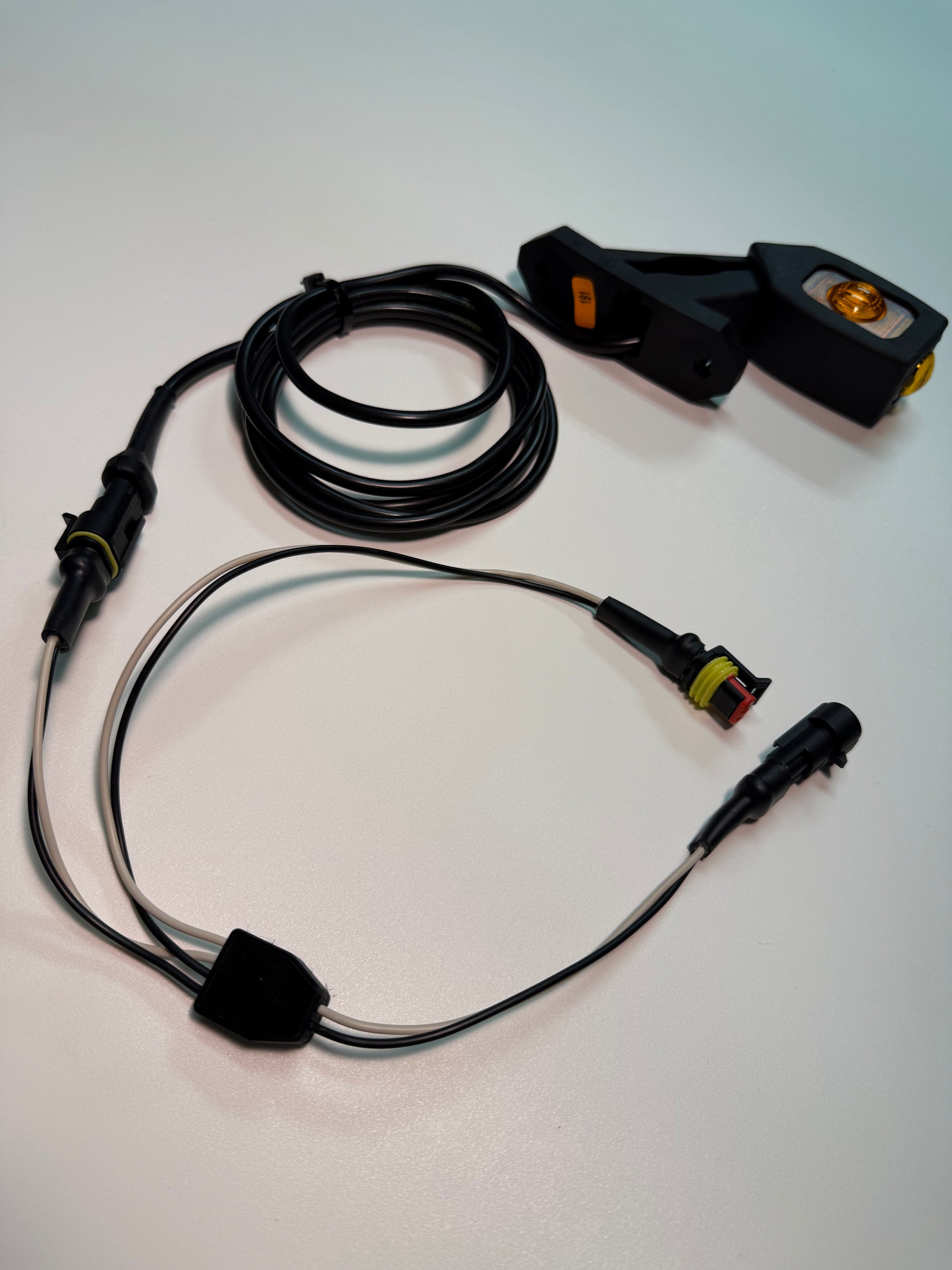

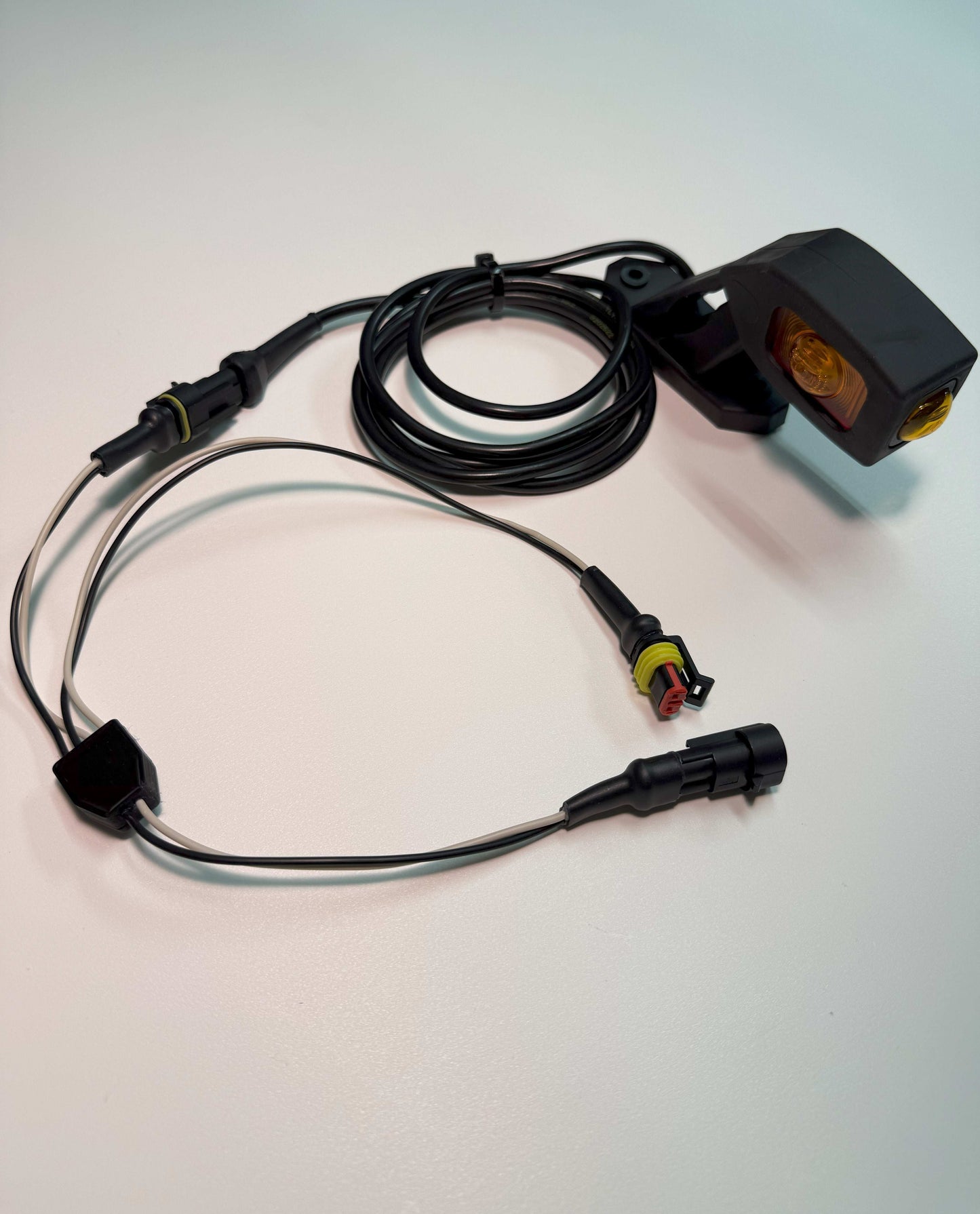

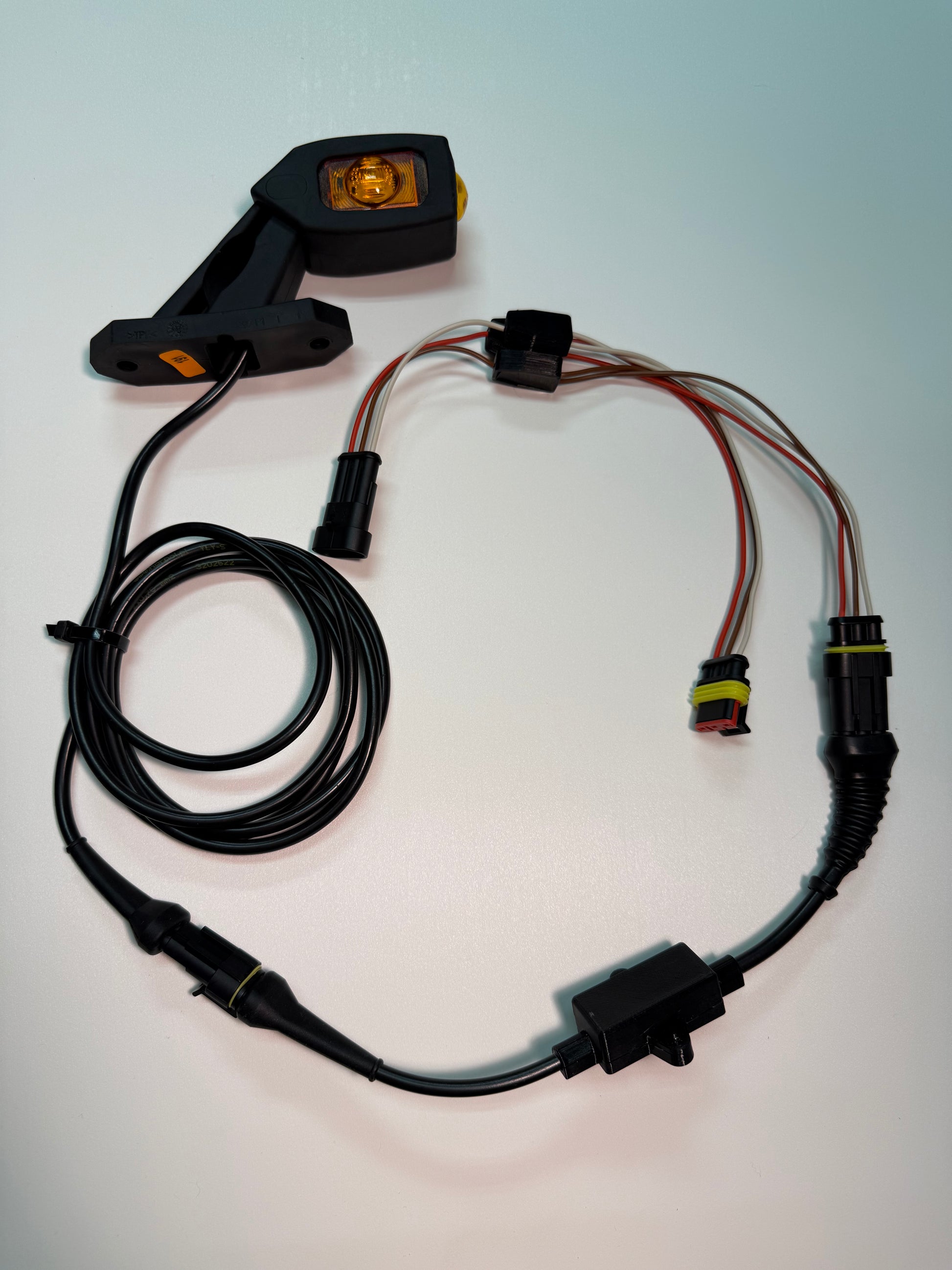

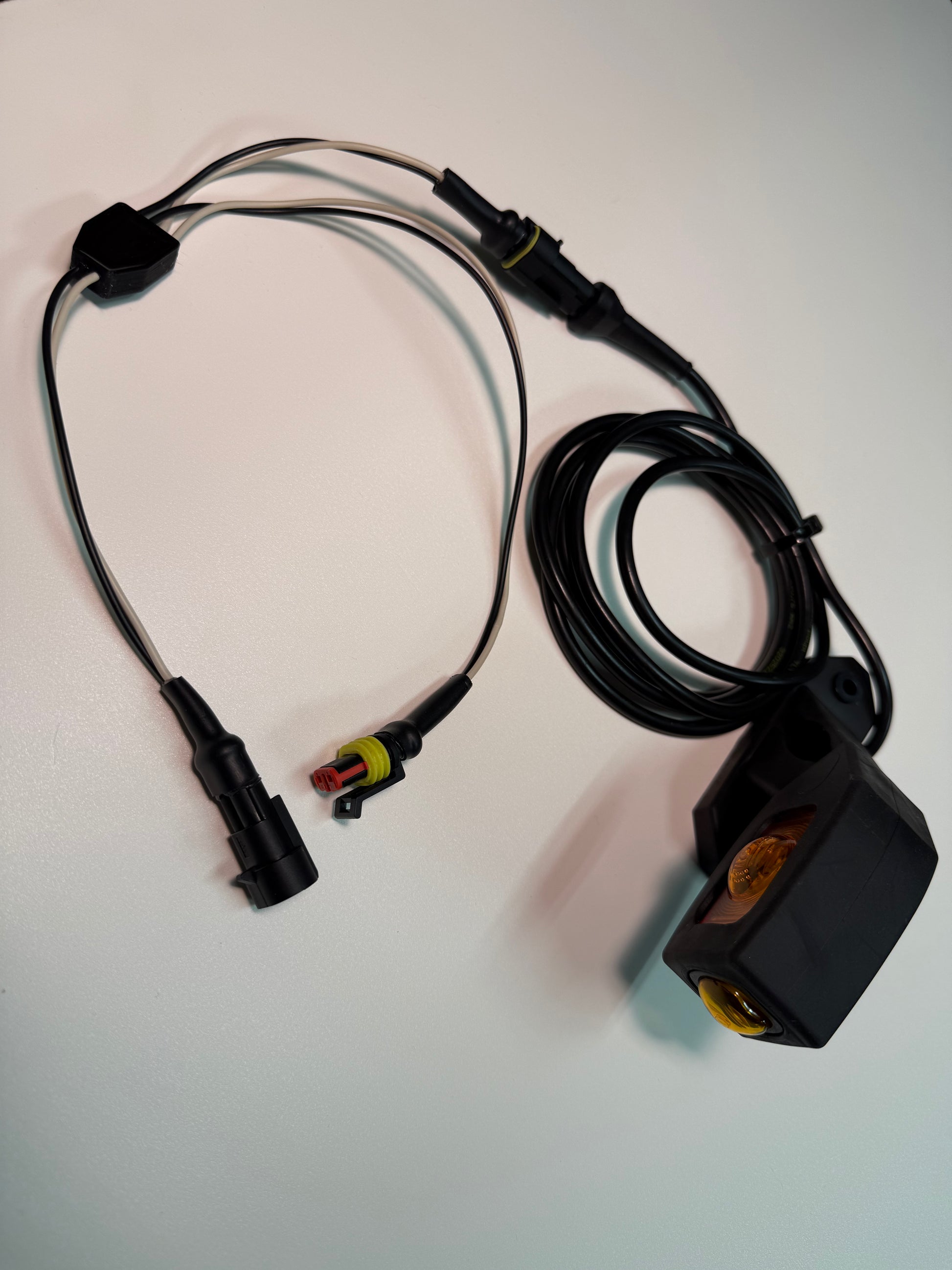

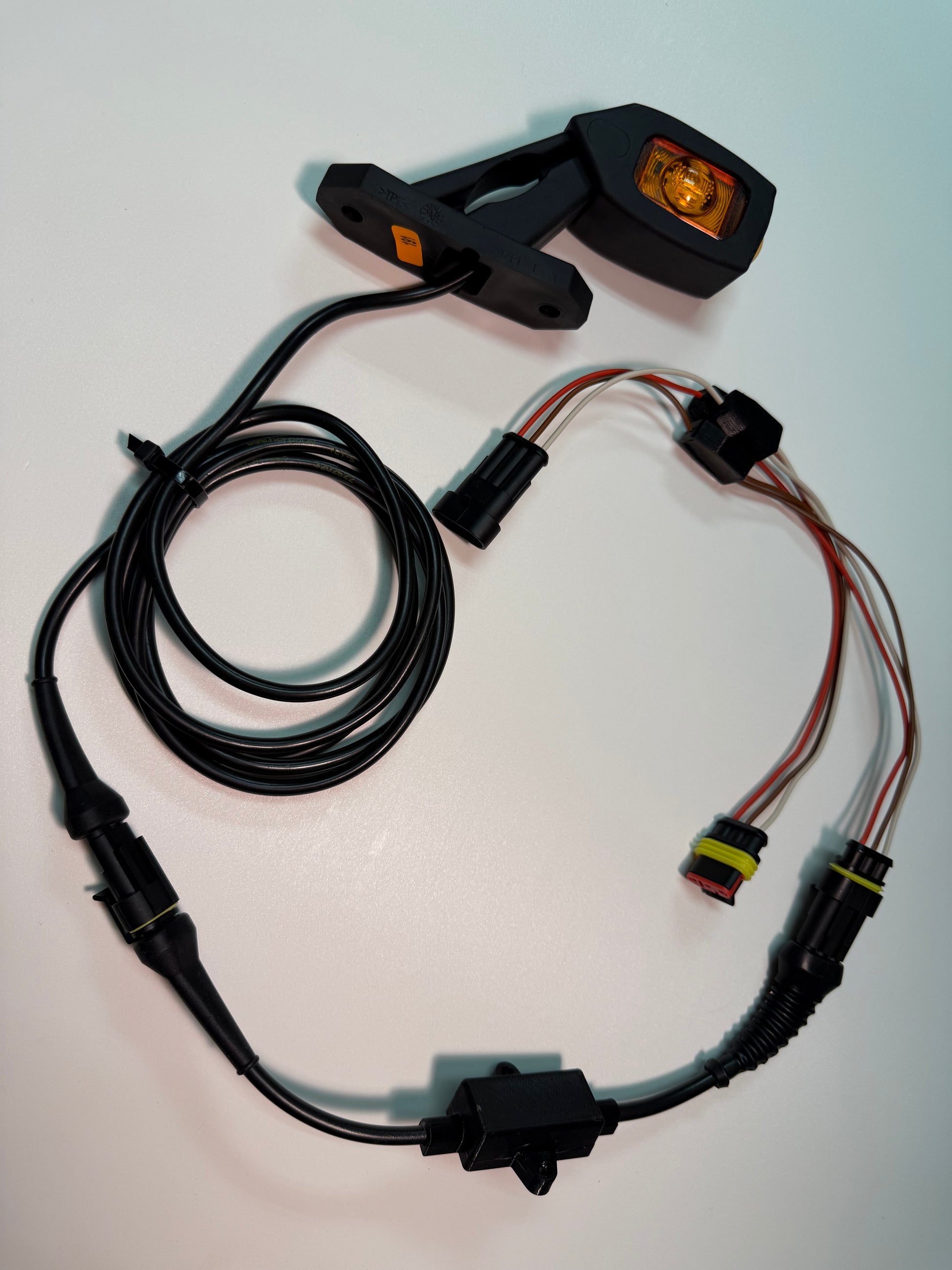

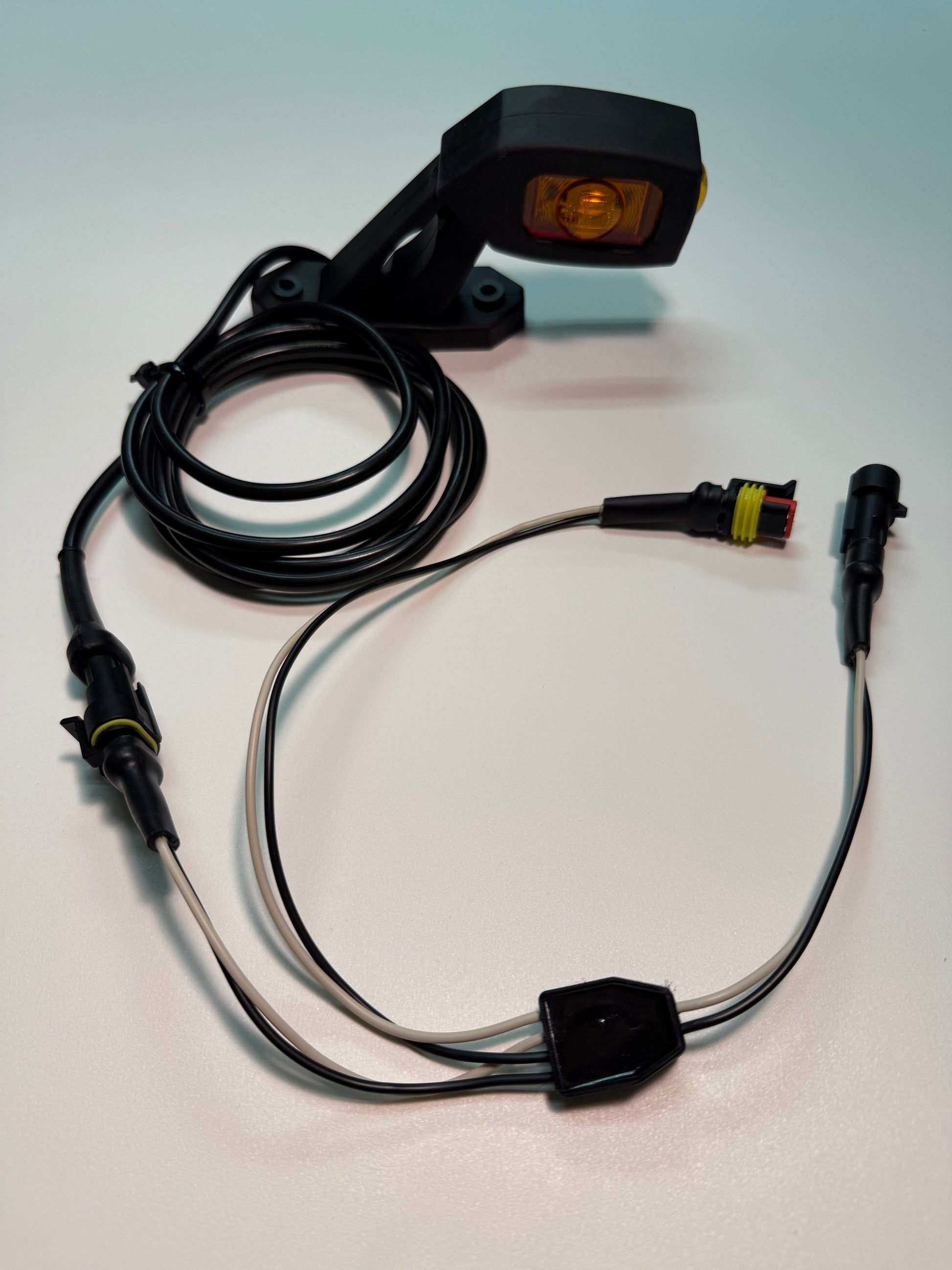

Optional adapter harnesses
What's NOT Included:
Mounting brackets
Key Features:
Light Functions:
Front Position Light: Bright and clear illumination to enhance front visibility
Side Marker Light: Improves side visibility for safer driving conditions
Rear Position Light: Ensures your vehicle is visible from the rear, improving safety on the road
Light Category: Marker light, ideal for a wide range of vehicle applications
Side: Horizontal mounting
Supply Voltage:12V and 24V electrical systems
Power Rating: Low power consumption with 0.6W (12V) / 1.2W (24V)
LED Quantity: Equipped with 3 high-quality LEDs for reliable and bright performance
LED Light: Yes, ensuring long-lasting and energy-efficient lighting
Ingress Protection Rating: IP68, offering full protection against dust and water, ensuring durability in harsh conditions. Shockproof.
Operating Temperature Range: Reliable operation in extreme temperatures from -22°F to +122°F (-30°C to +50°C)
Mounting: Short stalk arm designed for horizontal mounting, providing a secure and stable installation
Flexible: Looks and feels like dense rubber, but is engineered from a specialized, high-grade heavy duty elastomeric polymer.
Impact Elasticity: It bends and flexes easily upon contact with branches, docks, or obstacles without snapping, then immediately springs back to its original shape.
IP 68 rated: Shockproof/Waterproof/Dustproof.
Overall Length: 6.42 in (163 mm)
Projection: 3.43 in (87 mm)
Lamp Head Width: 1.42 in (36 mm)
Base Length: 4.13 in (105 mm)
Mounting Hole Spacing: 3.07 in (78 mm)
Color: amber, red
2 wire connection: Power & Ground
Cable: 6 ft (1.83 m) per lamp
LD 2109 Triple Outline Marker Light Set is built to withstand tough environments while providing exceptional lighting performance. Its IP68 rating ensures that it is fully protected against dust and water, making it suitable for use in various weather conditions. The use of premium LEDs guarantees long-lasting, bright illumination that enhances the visibility of your vehicle from multiple angles.
With its short oblique arm, this marker light is easy to install horizontally on the left side of your vehicle, ensuring a secure fit and optimal performance. Whether you're driving in extreme heat or cold, the lights will help keep your vehicle safe and visible.
Equip your vehicle with the LD 2109 Triple Outline Marker Light Set for superior visibility and safety on the road.
